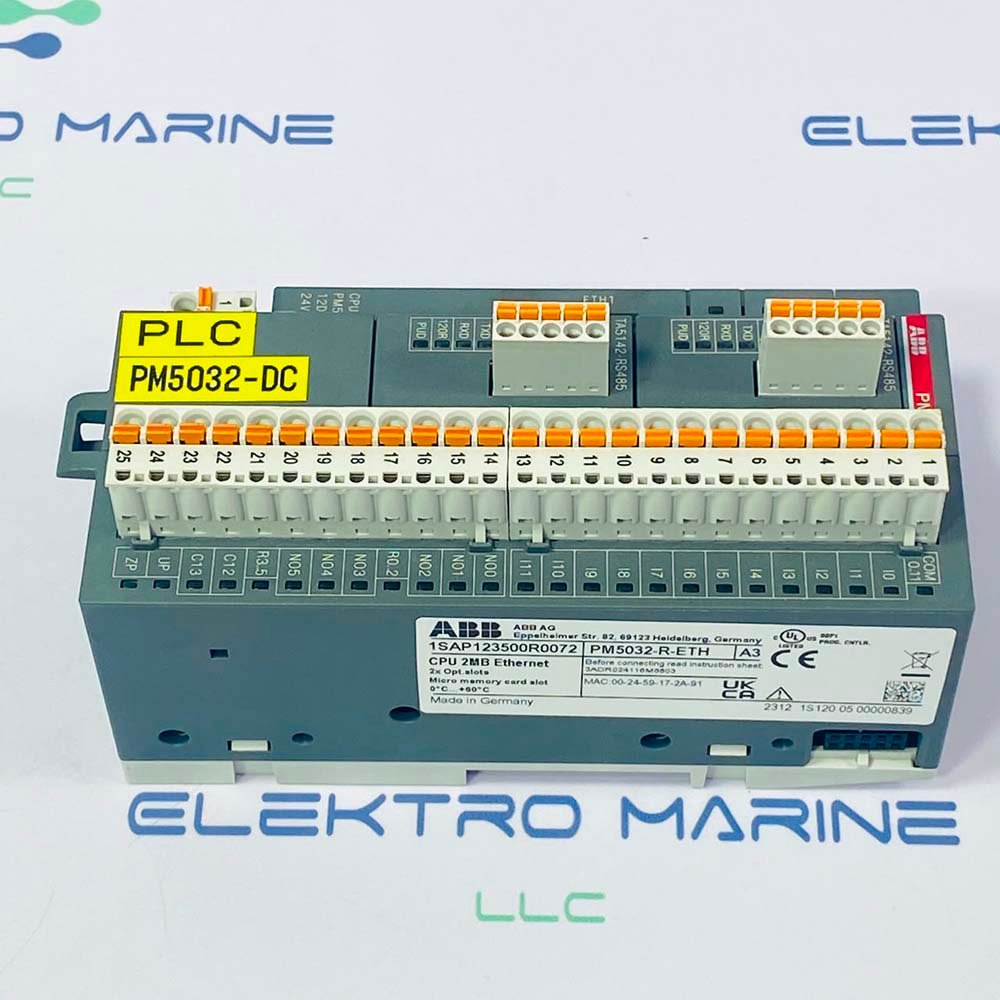

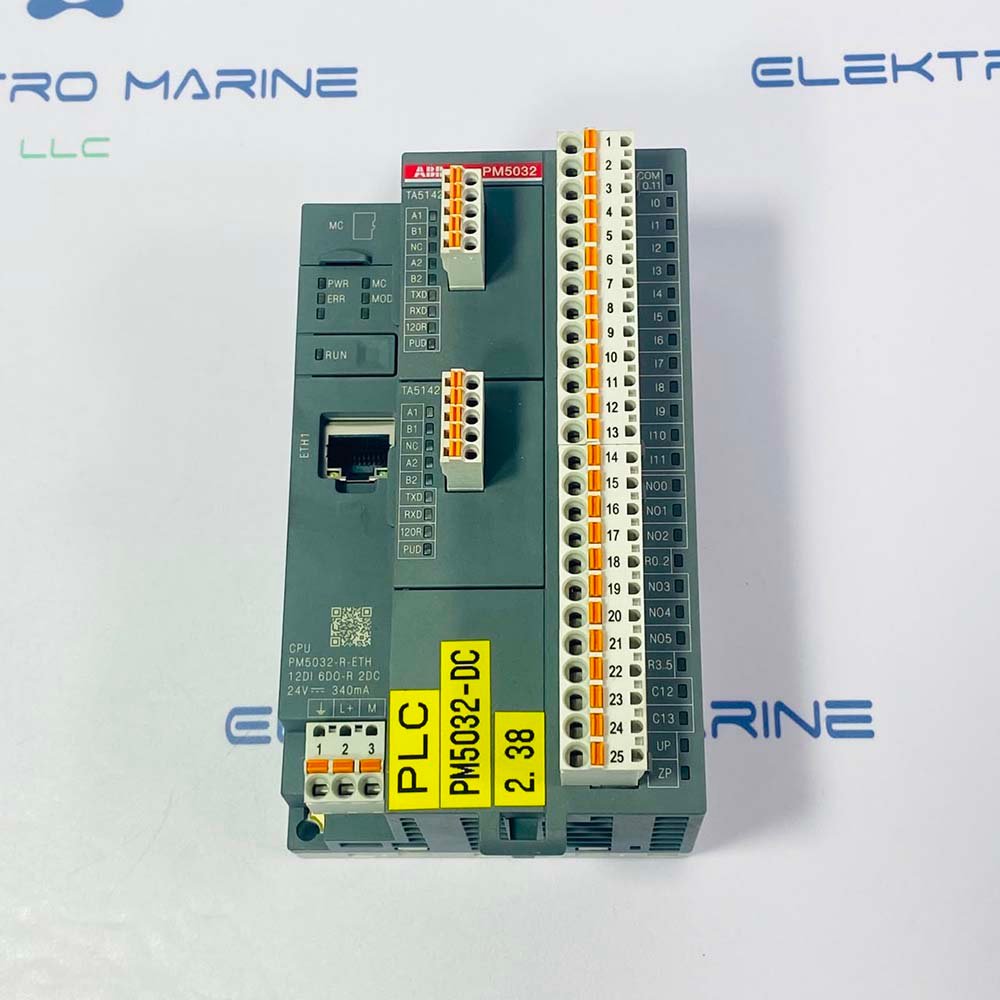

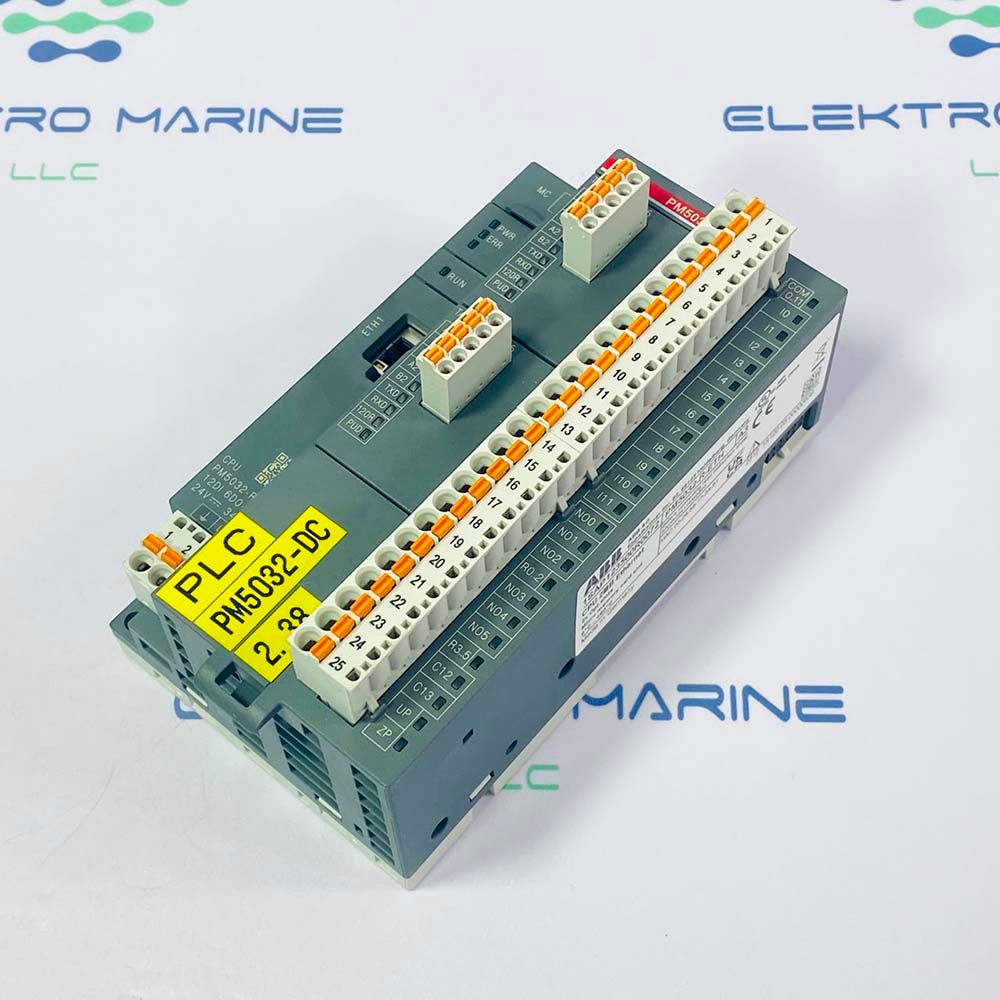

The ABB PM5032-R-ETH is a standard CPU/processor module from the AC500-eCo V3 PLC family, designed for compact industrial automation and machine-control applications. It operates on 24 V DC and integrates 12 digital inputs, 6 relay outputs, 2 configurable digital channels, and an Ethernet interface. The module also provides two option-board slots, allowing additional communication or functionality to be added.
Features
- Compact PLC CPU with integrated I/O
- 12 onboard 24 V DC digital inputs
- 6 integrated relay outputs
- 2 configurable digital input/output channels
- Built-in Ethernet communication
- 2 option-board slots for system expansion
- Supports fast counter and encoder functions
- Integrated real-time clock
- Micro memory card slot
- 24 V DC industrial power supply
- Suitable for modular and space-saving control solutions
- Designed for the ABB AC500-eCo V3 automation platform
Typical Applications
- Industrial automation systems
- Machine control systems
- Process control and monitoring
- Pump and motor control
- Conveyor and material-handling systems
- Packaging machinery
- Building automation
- Small and medium PLC control panels
- Remote equipment monitoring
- Ethernet-connected automation systems
- Marine auxiliary machinery control
- Industrial equipment sequencing and interlocking
