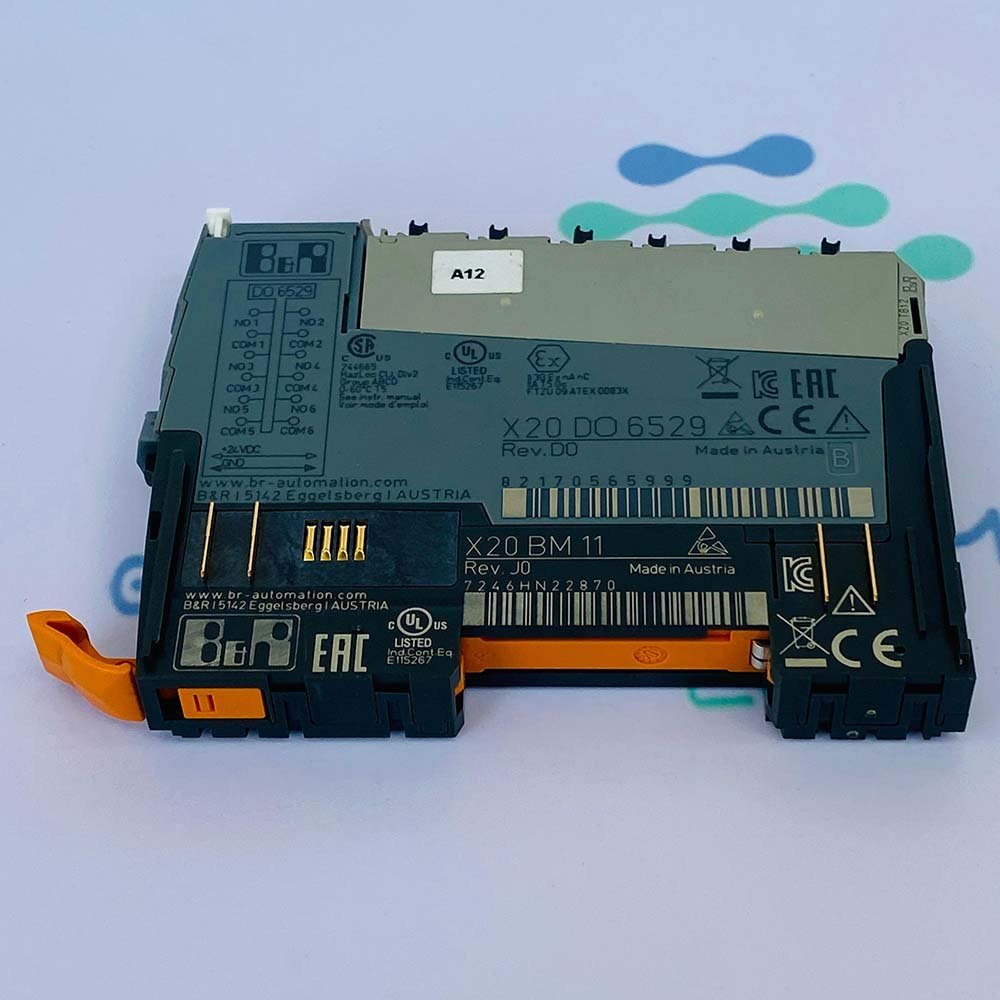

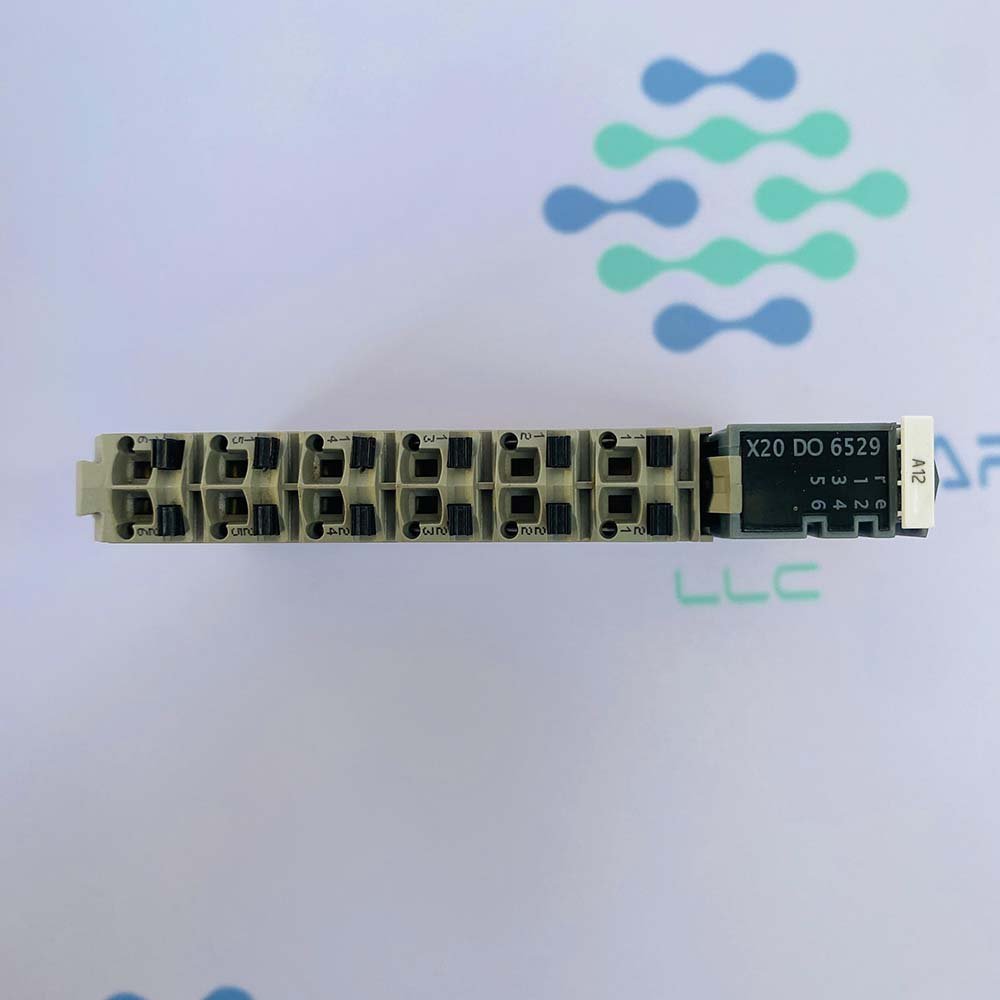

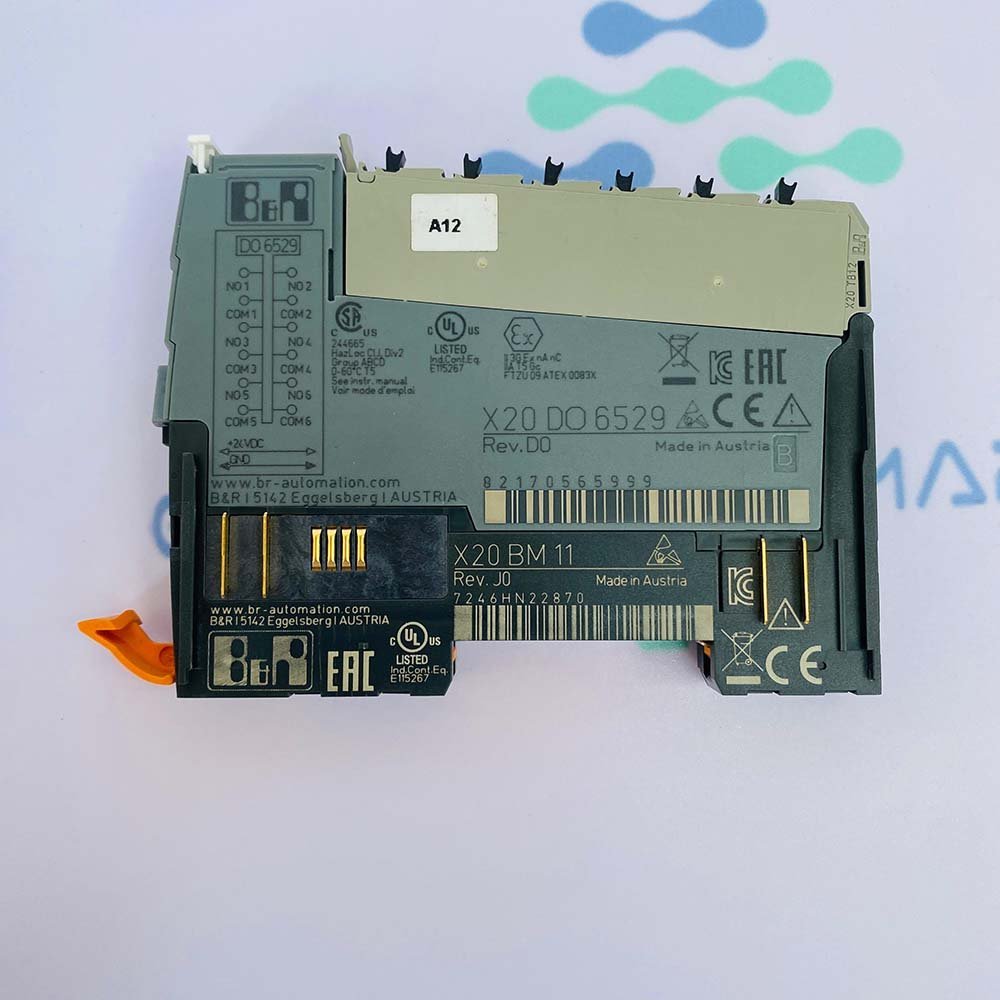

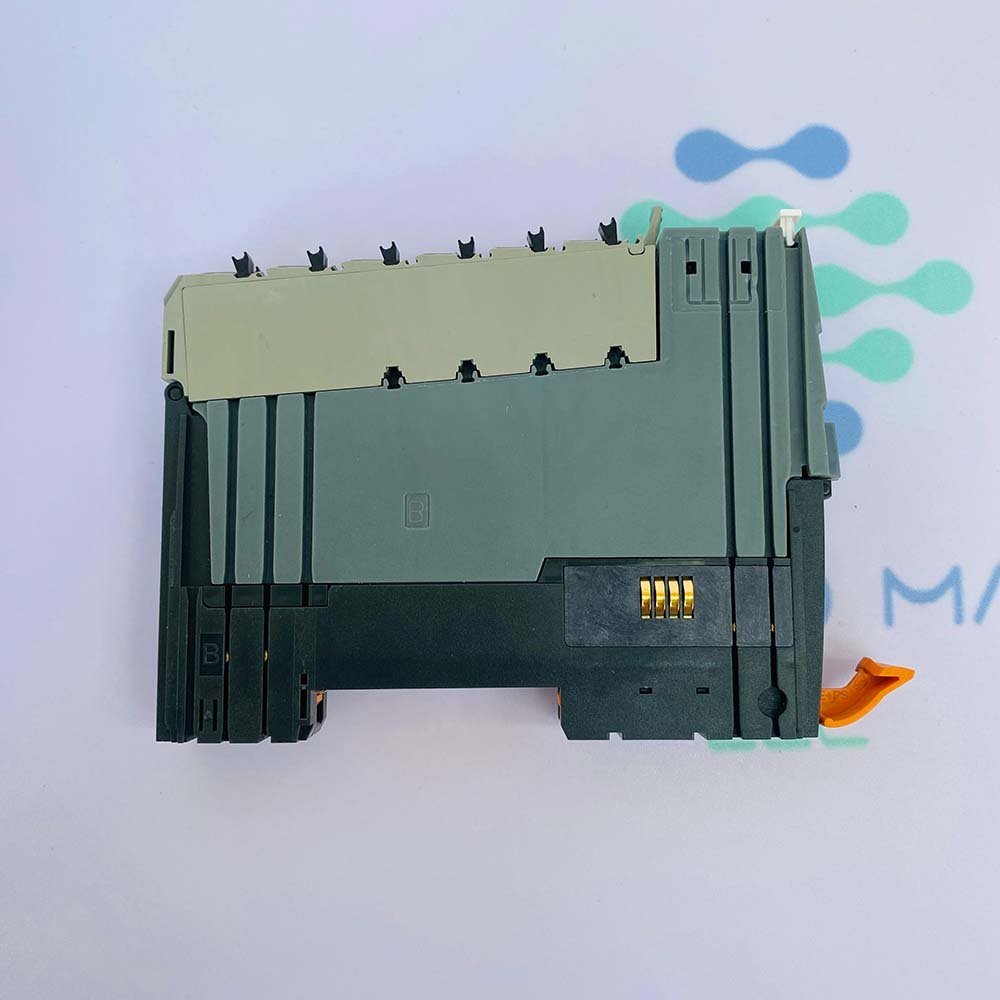

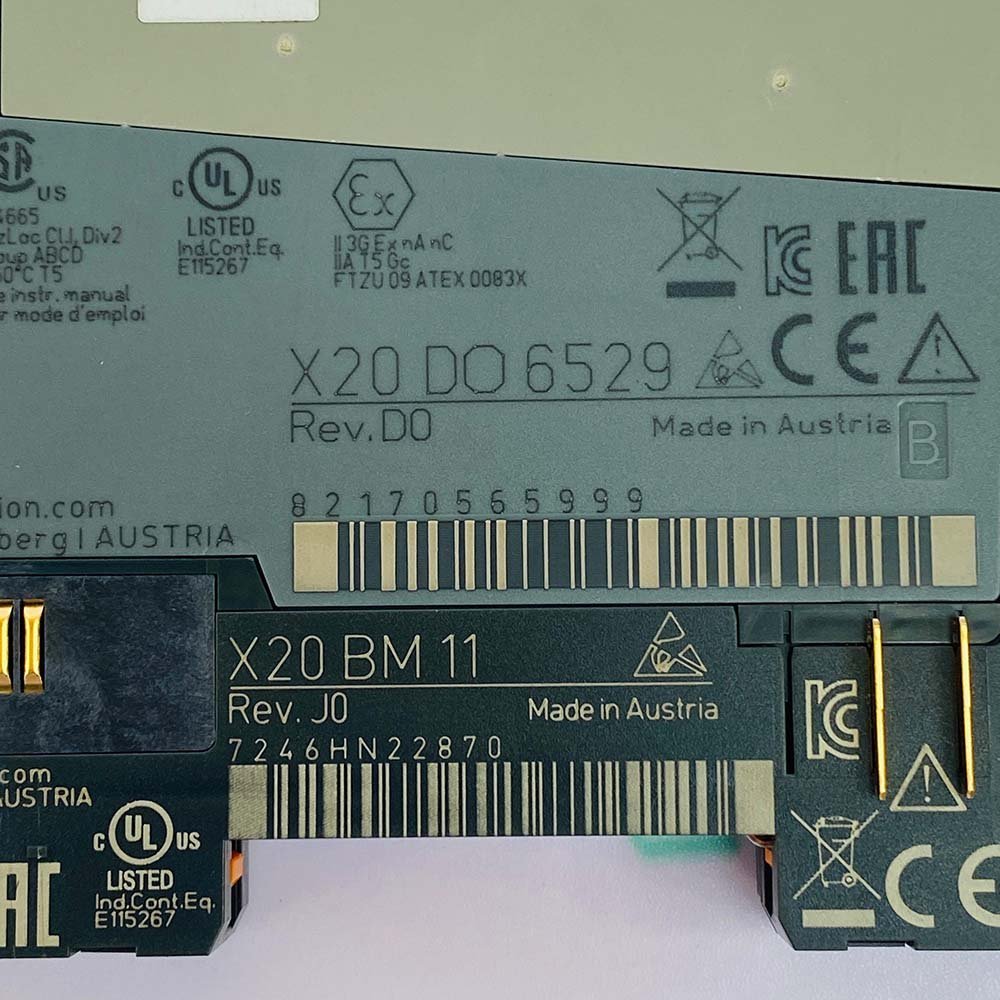

The B&R X20DO6529 is a 6-channel digital relay output module for the B&R X20 automation system. It provides six normally-open relay contacts for switching loads up to 30 VDC or 115 VAC, with each output individually electrically isolated.
Key Features
- 6 digital relay outputs
- Six normally-open contacts
- Supports 30 VDC and 115 VAC loads
- Each output is individually electrically isolated
- Up to 1 A at 30 VDC per channel
- Up to 0.5 A at 115 VAC per channel
- Maximum 2 A inrush current per channel
- Output status indication via LEDs
- Module run/error diagnostics
- Compact 12.5 mm X20 design
- Suitable for horizontal and vertical installation
- Industrial IP20 construction
- Marine certifications include DNV, ABS, BV, LR, CCS and KR
Typical Applications
- Marine automation systems
- Engine-room automation panels
- Generator control systems
- Alarm and annunciation systems
- Relay and contactor switching
- Solenoid control
- Pump and motor auxiliary control
- Machinery control panels
- Industrial PLC systems
- Process automation
- Distributed X20 I/O systems
- Shipboard control and monitoring systems
