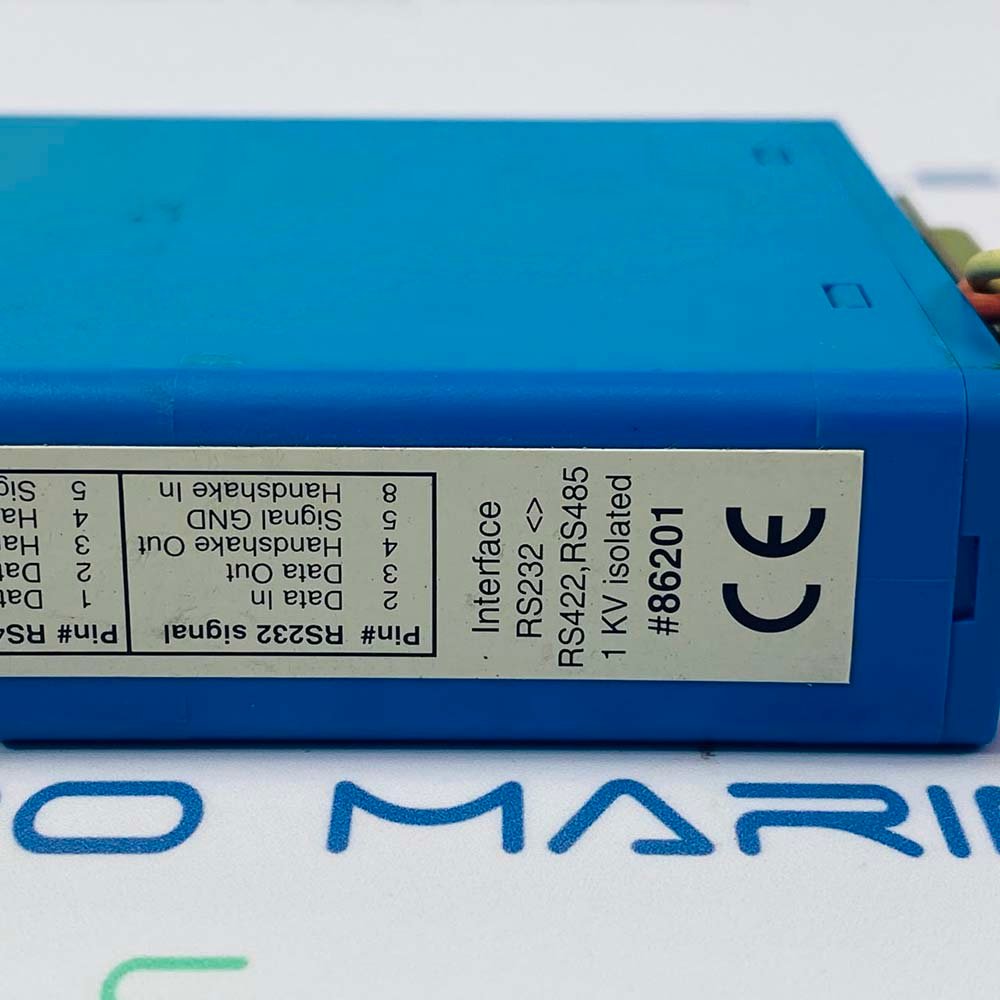

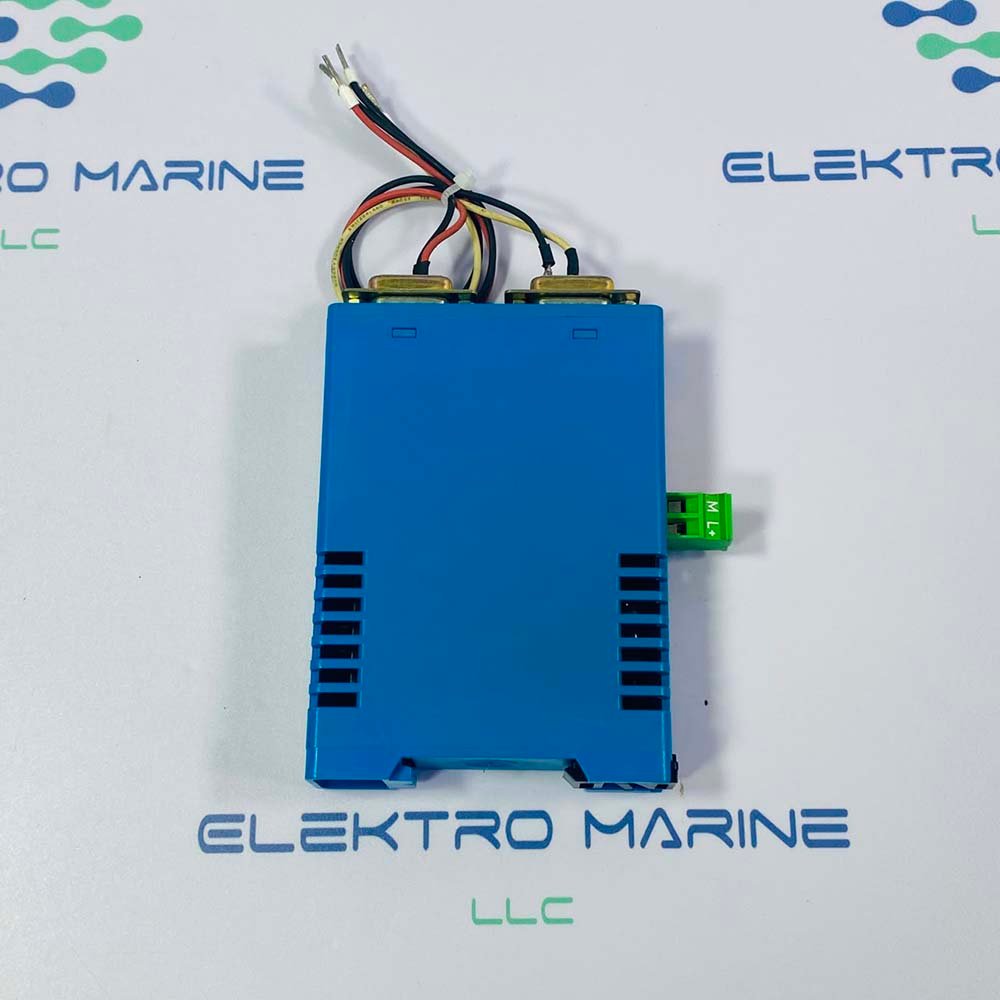

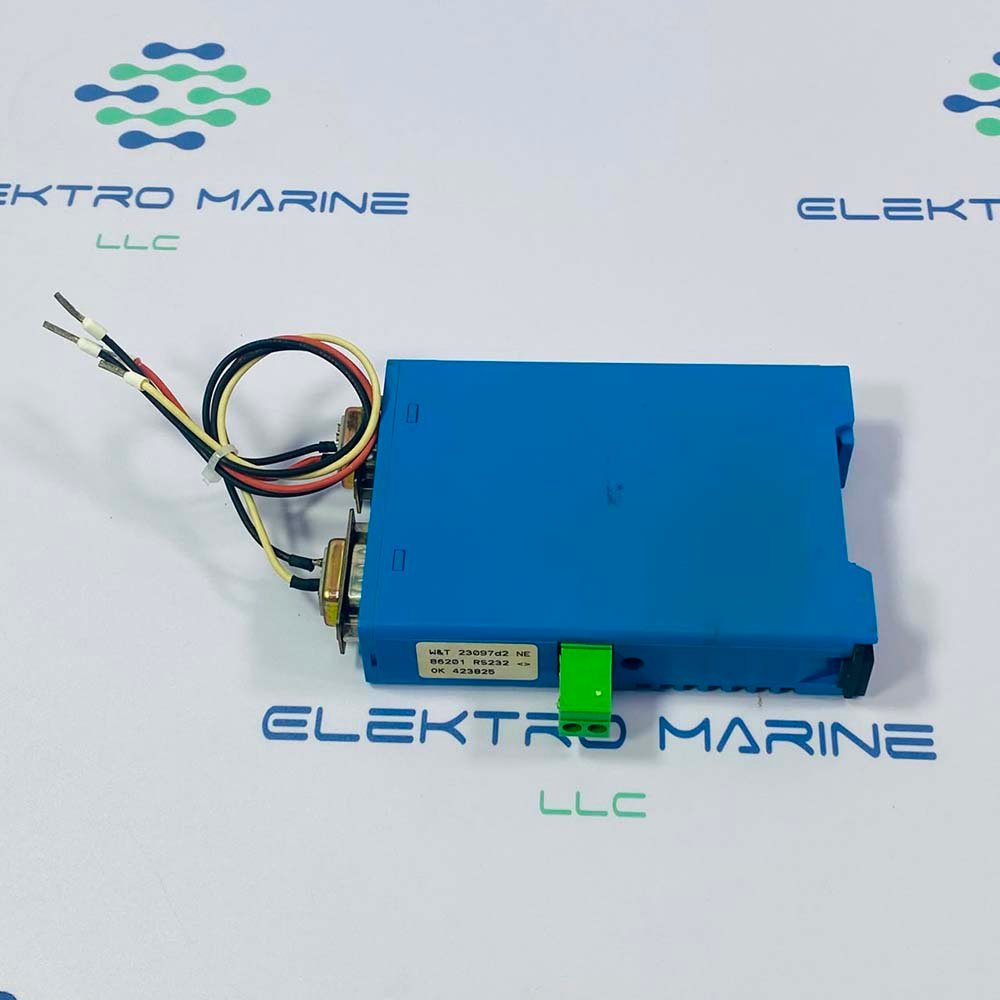

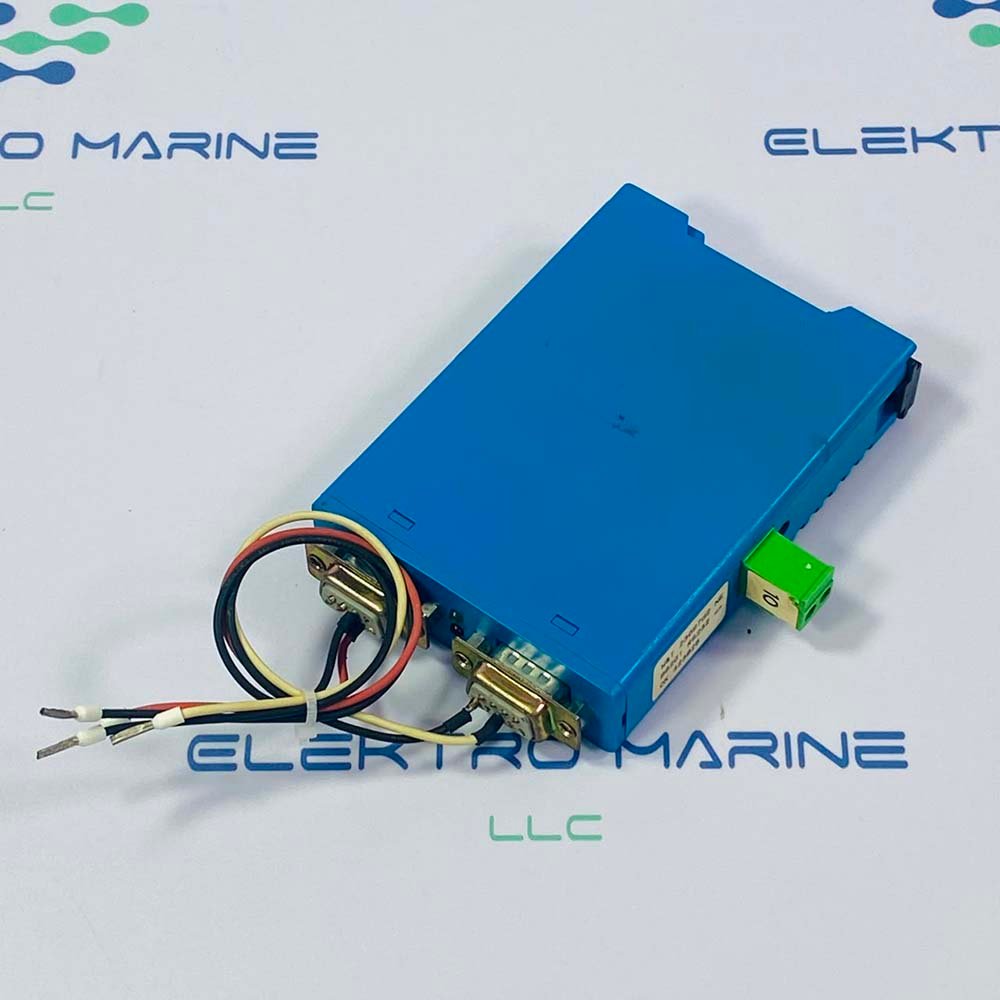

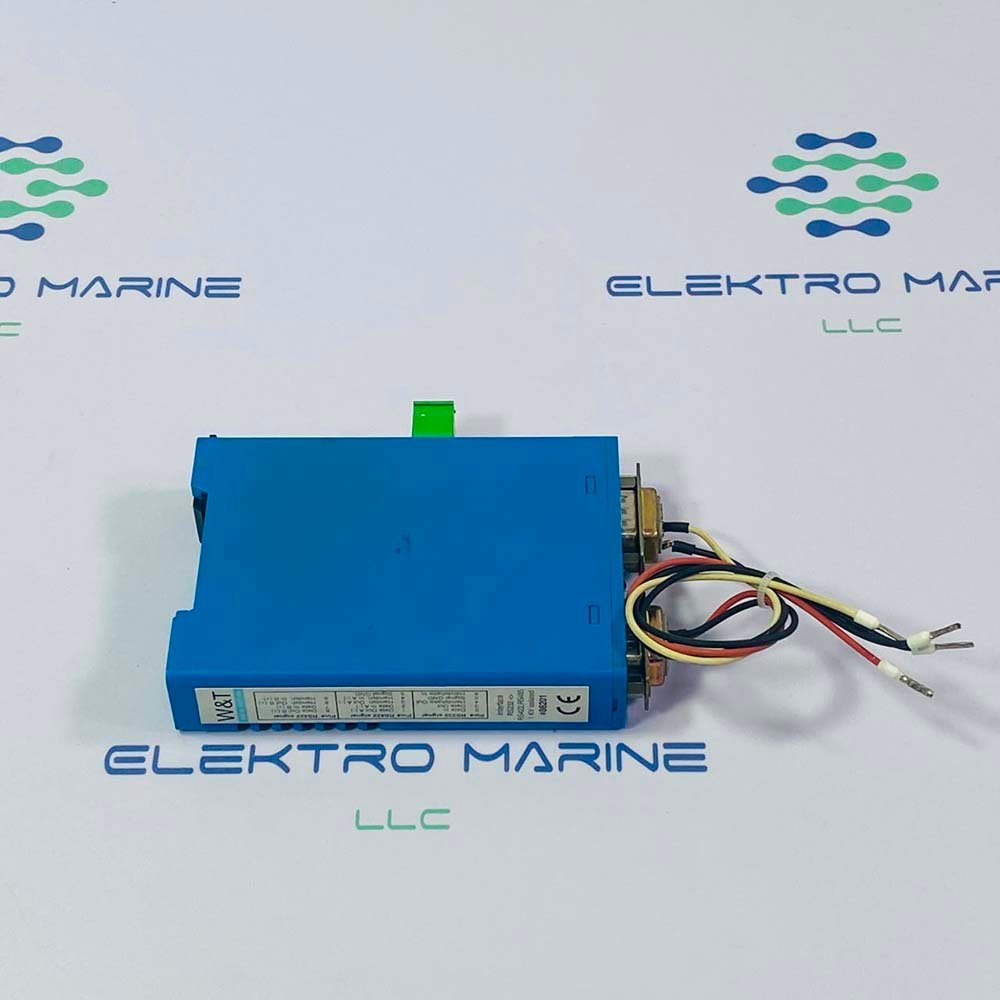

The W&T 86201 is an industrial interface converter designed for bidirectional communication between RS232 devices and RS422/RS485 equipment. It converts one data channel and one handshake channel in each direction while providing galvanic isolation between the interfaces and power supply. Its DIN-rail housing, flexible RS485 operating modes, and industrial noise immunity make it suitable for reliable serial communication in demanding automation environments.
Features
- Bidirectional RS232 to RS422/RS485 conversion
- Supports RS422 and RS485 2-/4-wire operation
- Data rates up to 115.2 kbaud
- 1000 V DC galvanic isolation between interfaces and power supply
- Automatic or handshake-controlled RS485 operation
- Switchable termination network for RS485 communication
- Supports RxD, TxD, CTS and DTR signals
- Integrated ESD protection for industrial environments
- Wide 12–24 V AC/DC power input
- Reverse-polarity-protected power input
- Compact DIN-rail housing for control cabinets
- Power and data-status LED indication
- Suitable for noise-sensitive industrial serial communication.
Typical Applications
- Industrial automation and control systems
- PLC and controller communication
- RS232 equipment connection to RS485 networks
- SCADA and process-control systems
- Factory automation equipment
- Machine control and monitoring systems
- Serial communication over longer cable distances
- Control-panel communication interfaces
- Building automation systems
- Data acquisition and monitoring equipment
- Marine and industrial control installations
- Legacy RS232 equipment integration with RS422/RS485 systems.
